Slotting Machine

Name: Slotting Machine
Brand: SAGAR MACHINE TOOLS
Price: 80000 INR
Availability: InStock

Price 80000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Slotting Machine Specification

Model
SM-200

Rotation
Single Direction

Product Type
Slotting Machine

General Use
Industrial use

Material
Cast Iron, Mild Steel

Type
Vertical Slotting

Capacity
50-200 mm Stroke

Weight (kg)
550 kg

Computerized
No

Automatic
No

CNC Or Not
Not CNC

Control System
Manual

Table Size
320 x 150 mm

Table Slide Way
V-shaped

Magnetic Chuck Size
250 x 180 mm

Grinding Wheel Size
200 mm

Grinding Wheel Speed
2800 RPM

Grinding Length
130 mm

Floor Space
700 x 550 mm

Spindle Speed
60 - 120 SPM

Power
1.1 kW

Voltage
220-240 V

Dimension (L*W*H)
Approx. 1200 x 800 x 1650 mm

Feature
High Precision, Durable

Color
Blue, Grey

Coolant System
Available

Max Slotting Height
250 mm

Work Table Swivel
60 Degree

Stroke Length
200 mm

Lubrication Type
Centralized

Max Distance from Table to Ram
315 mm

Max Tool Shank Diameter
16 mm

Ram Adjustment
Manual

Noise Level
Below 80 dB

Operating Temperature Range
5°C to 45°C

Main Drive
Gear Driven

Slotting Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India, South India, Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Lakshadweep, Mizoram, Meghalaya, Manipur, Andhra Pradesh, Bihar, Chandigarh, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Pondicherry, Uttar Pradesh, Uttarakhand, West Bengal

About Slotting Machine

Sagar Machine Tools

Slotting Machine

A slotting machine is a specialized machine tool used to create slots or grooves on workpieces. It is commonly used in metalworking and machining applications to produce keyways, shapes, and other features in components. Here are key features and functions of a slotting machine:

Slotting Operation: The primary function of a slotting machine is to create slots, keyways, or other recesses on the surface of a workpiece. It accomplishes this by using a single-point cutting tool, called a slotting tool, which moves vertically to cut into the workpiece.

Vertical Movement: Slotting machines have a vertical ram that carries the cutting tool. The ram moves up and down to make the cutting tool engage with the workpiece, creating the desired slot. Worktable and

Workpiece Fixturing: The workpiece is mounted on a worktable that can be adjusted in different directions to position the workpiece accurately. The worktable may also be rotated to create angular slots.

Tool Head and Tool Feed: The slotting tool is mounted on a tool head, which can be swiveled to cut slots at various angles. The tool head can also be fed horizontally to cut slots of different lengths.

Power Source: Slotting machines are typically powered by electric motors. The power is transmitted to the ram, which drives the cutting tool. Automatic Feed: Many slotting machines come equipped with automatic feed mechanisms that control the vertical movement of the ram. This feature helps achieve uniform cutting and improved efficiency.

Adjustable Stroke Length: The stroke length refers to the vertical distance the ram travels during each cutting cycle. Slotting machines often allow for adjustments in stroke length to accommodate different workpiece sizes and requirements.

Coolant System: Some slotting machines are equipped with a coolant system to lubricate and cool the cutting tool during the machining process. This helps in extending tool life and improving the quality of the machined surfaces.

Applications: Slotting machines are used in various industries, including manufacturing, tool and die making, and metalworking, for producing slots in components such as gears, keyways, and internal profiles.

Manual and CNC Slotting Machines: While traditional slotting machines are manually operated, computer numerical control (CNC) technology has been integrated into some modern slotting machines. CNC slotting machines offer automated control over the machining process, allowing for precise and complex slotting operations. Slotting machines are valuable tools for creating precise slots in workpieces and are often used in conjunction with other machining processes to produce intricate components for various applications. The choice of a slotting machine depends on factors such as the size of the workpieces, the complexity of the slots required, and production requirements.

Engineered for Versatility and Durability

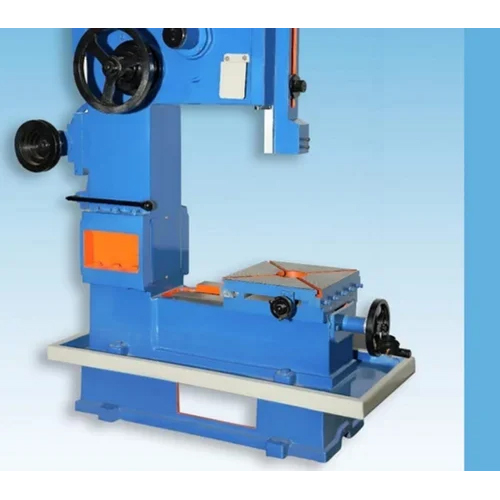

The SM-200 Slotting Machine boasts a robust construction with a 200 mm stroke length that easily handles cast iron and mild steel components. Its gear-driven main drive, V-shaped table slide way, and solid magnetic chuck offer stability and versatility, enabling precision slotting, shaping, and forming, all while maintaining low noise levels and consistent performance.

Optimized User Experience and Safety

Designed with user needs in mind, the SM-200 features manual ram adjustment for fine control and a centralized lubrication system to ensure smooth operation. The machine operates within a safe noise level below 80 dB and supports a comfortable temperature range from 5C to 45C, making it suitable for diverse industrial environments across India.

FAQ's of Slotting Machine:

Q: How do I use the SM-200 Slotting Machine for precision slotting tasks?

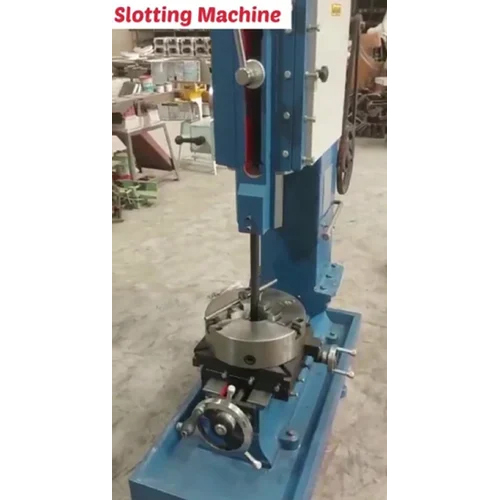

A: Begin by securely clamping the workpiece onto the 250 x 180 mm magnetic chuck. Adjust the stroke length (up to 200 mm) and swivel the work table as required (up to 60 degrees) to position your material accurately. Use the manual ram adjustment to ensure the tool makes precise contact, then operate the machine via the gear-driven drive for consistent, controlled slotting.

Q: What benefits does the centralized lubrication and coolant system provide?

A: The centralized lubrication system minimizes wear by applying oil evenly to critical components, reducing maintenance and prolonging machine life. The coolant system helps dissipate heat, enhancing tool durability and maintaining workpiece quality during extended industrial use.

Q: Where is the SM-200 Slotting Machine most effectively used?

A: This slotting machine is ideal for industrial facilities involved in metalworking and manufacturing, such as workshops, tool rooms, and production plants. Its robust design and precision features make it suitable for a wide range of slotting and shaping tasks across India.

Q: When should I adjust the ram manually, and how is this done?

A: Manual ram adjustment is necessary when setting up for different slot depths or when changing workpieces. Use the designated adjustment handle to set the ram's position before initiating the main drive, ensuring alignment and accuracy for each specific operation.

Q: What materials can be processed with the SM-200 Slotting Machine?

A: The SM-200 is designed to handle cast iron and mild steel, providing reliable performance and high-precision slotting on these materials, thanks to its rigid construction and powerful 1.1 kW motor.

Q: How does the gear-driven main drive enhance the operation process?

A: The gear-driven main drive delivers uniform speed transmission, reducing vibration and increasing cutting stability. This mechanism ensures consistent performance and high-quality slotting results even under demanding workloads.

Q: What are the primary features ensuring long-term durability and operator benefit?

A: Key features such as high-precision construction, durable materials, centralized lubrication, and a robust gear system all contribute to the machine's longevity. Operator benefits include low noise (below 80 dB), easy adjustments, and dependable operation, fostering a productive and safe working environment.
